Black Splitter S2X 800+ All Models

At a Glance

Model Carrier Weight Range Weight
S2X 800+ 1.5 - 9 Tons 334lbs (152kg)

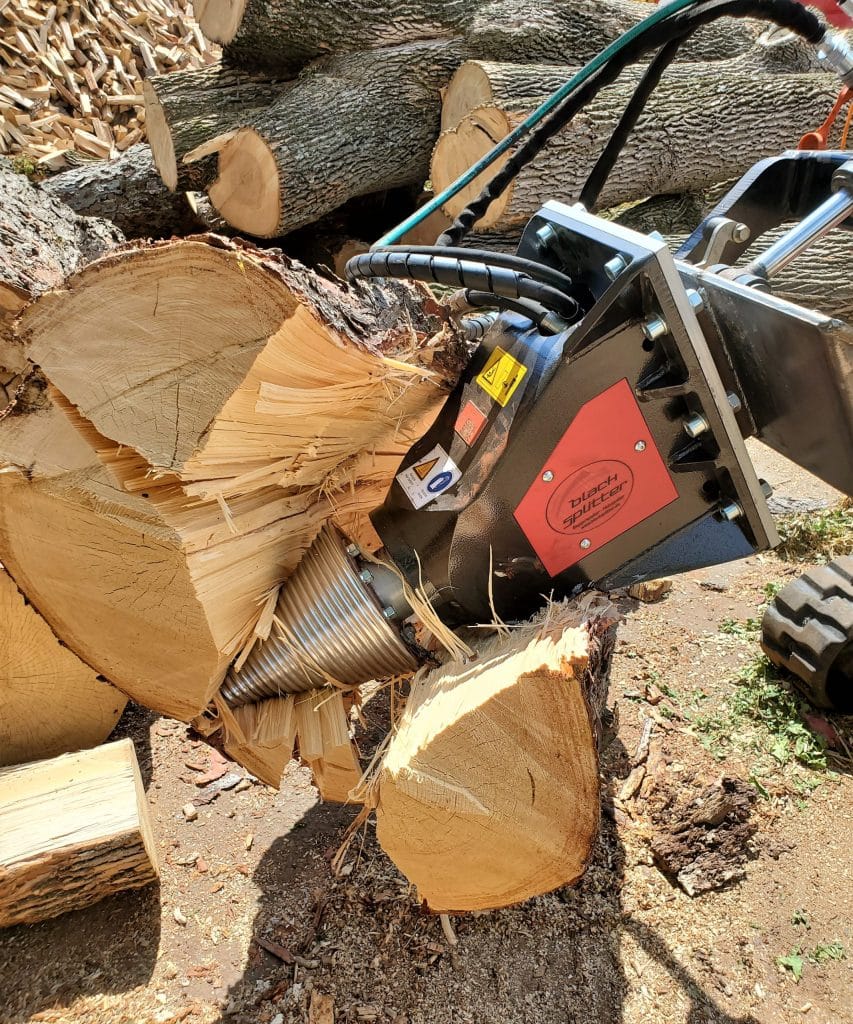

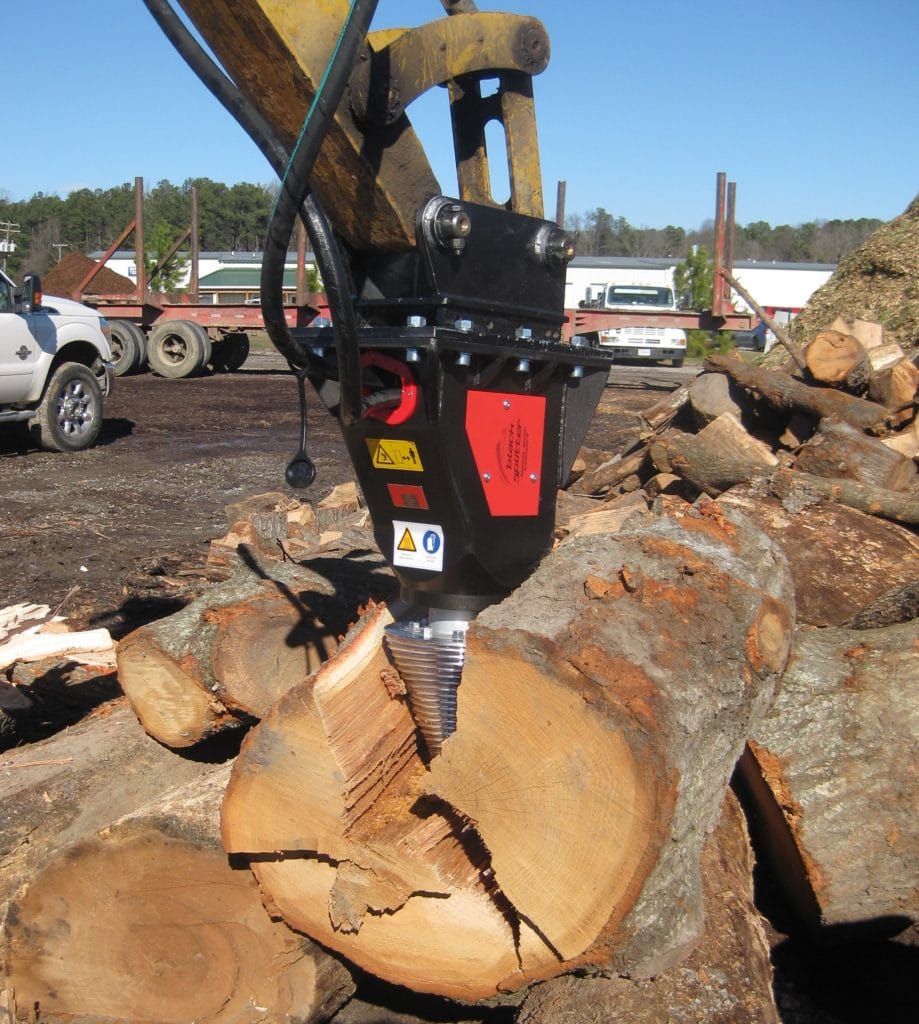

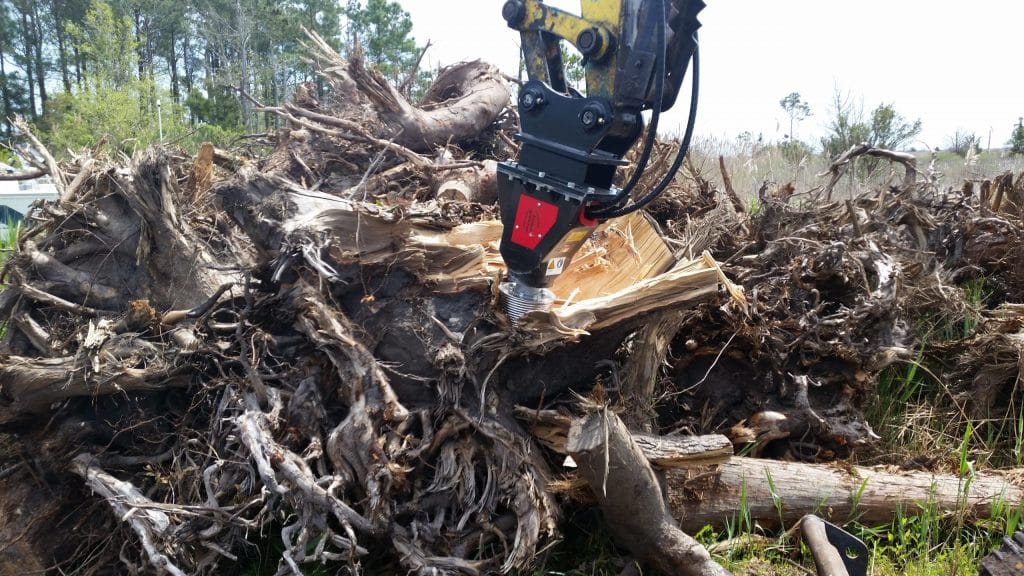

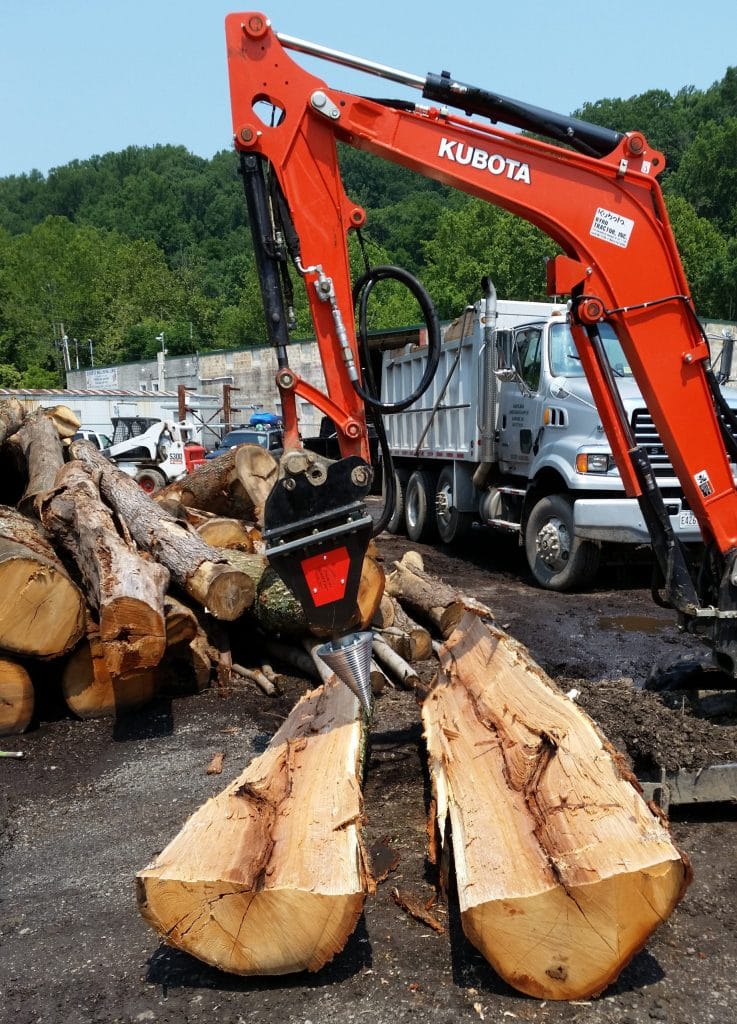

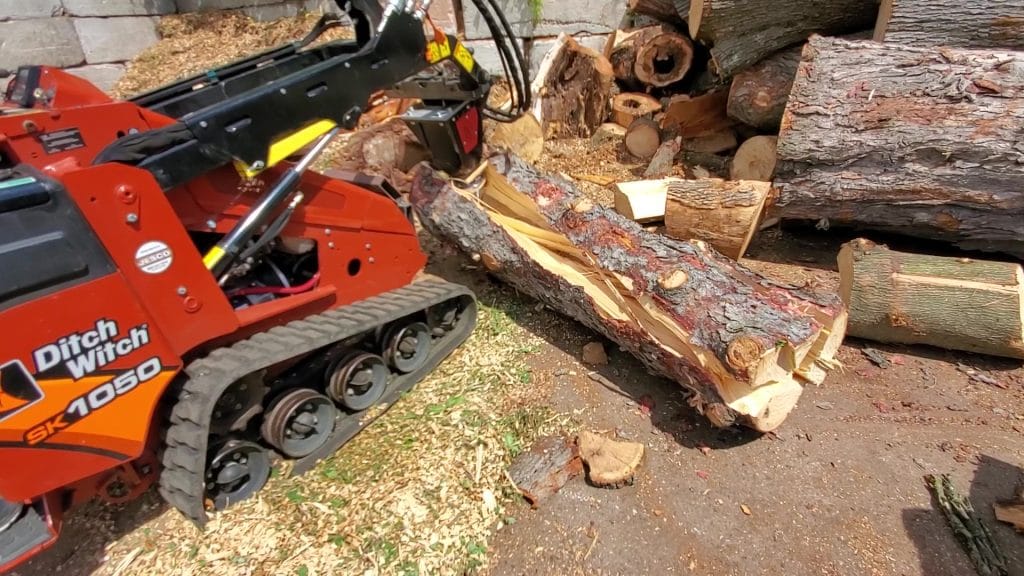

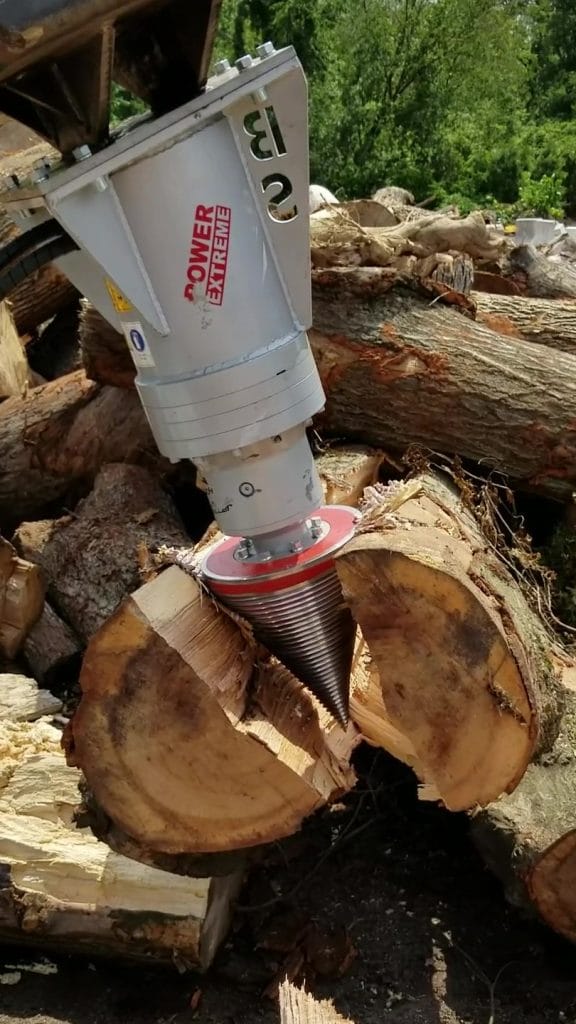

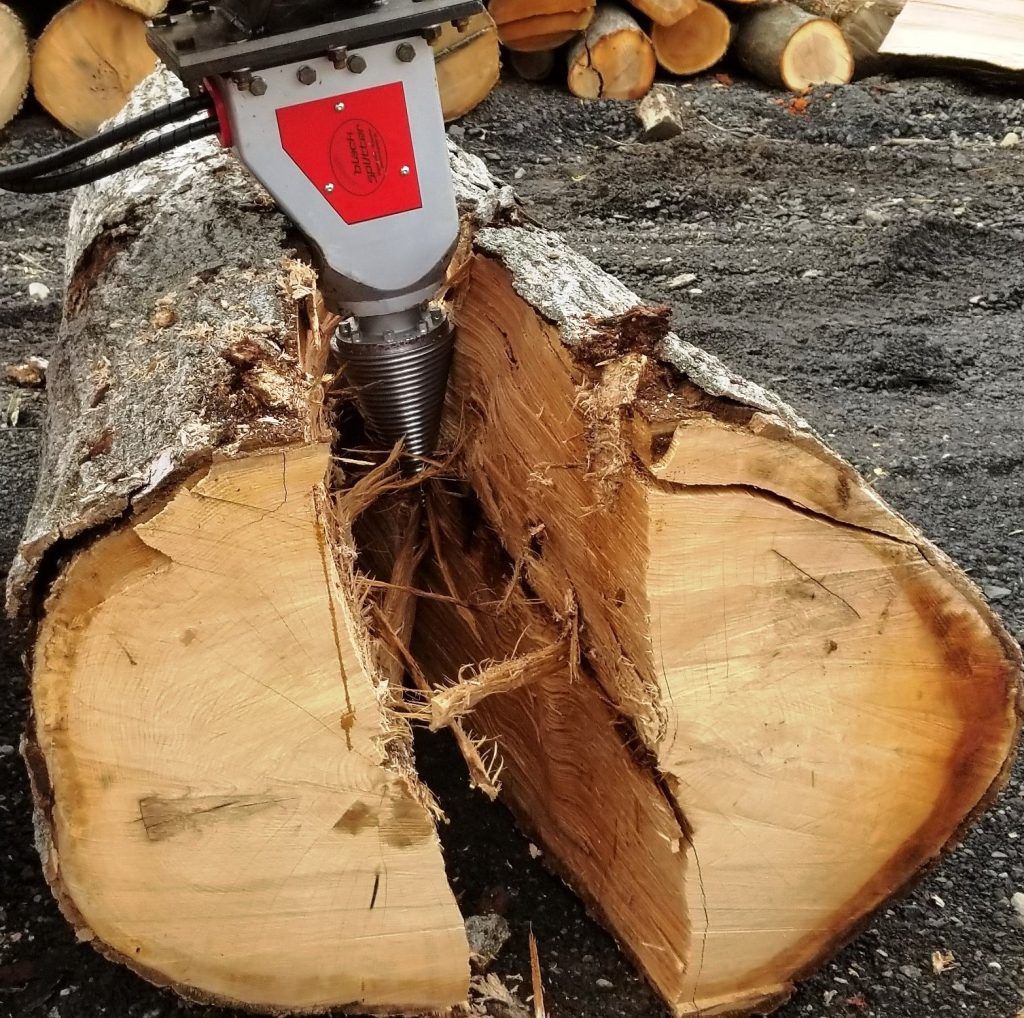

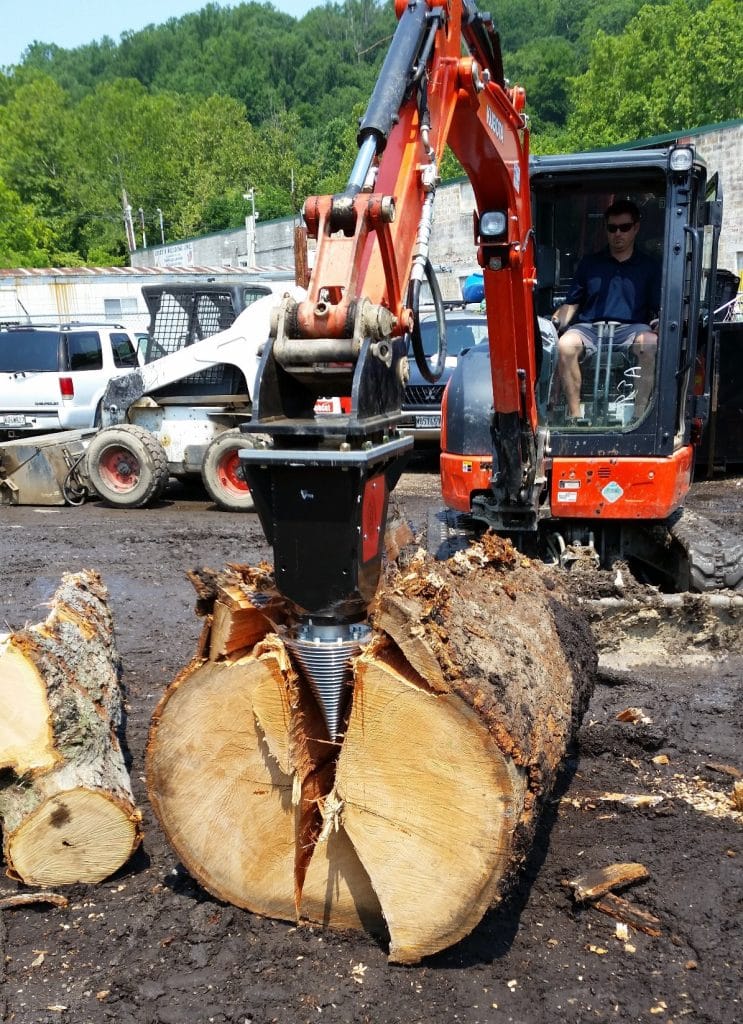

The Black Splitter S2X 800+ is designed to fit all models of excavators up to 31,000+/-lb. The unique rotating threaded cone provides extremely efficient wood-splitting power for various timber types including hard, soft, straight, twisted, stumps and roots. The two piece chromium-steel cone with replaceable tip has a double helical thread design with a thread pitch of 24 mm for rapid penetration into the hardest of timber. The cone can also be used to maneuver and position individual logs before and after splitting.


Cone:chromium-steel; 245 mm (9.65”) diameter x 12” long; double helical thread; 24 mm thread pitch; replaceable tip
Motor Shaft:90 to 100 mm diameter
Inlet Pressure PSI:2610-5250 (recommended operating PSI: 3,500 – 5,000)
Max Torque:2965+/-
Leakage Oil Return:Required

RPM Calculator

Typical lead time is 3-6 weeks if not in stock. Custom mounting bracket is not included but can be order at an additional cost.

Other Models

Model Carrier Weight Range Request Information

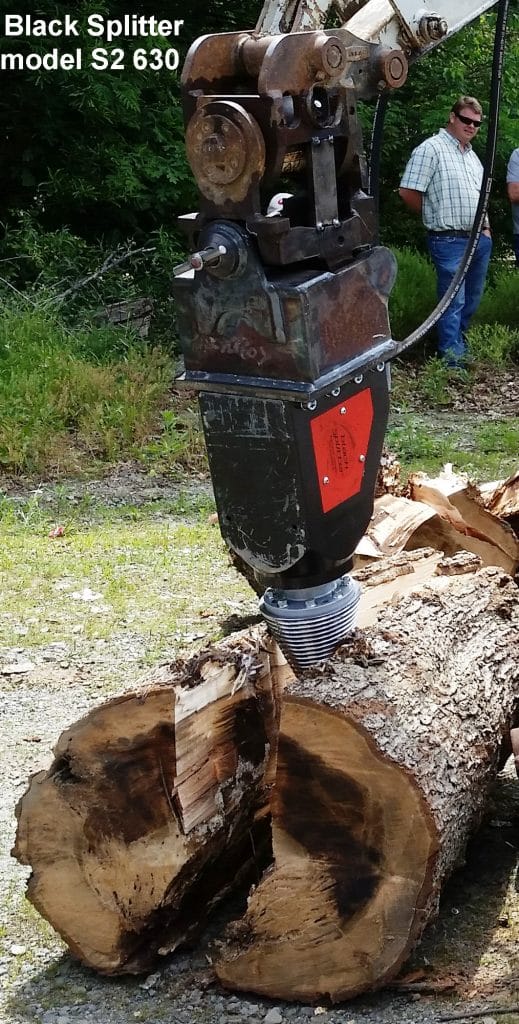

S2 630 1.5-6 Tons Request Information
S2X 800 1.5-9 Tons Request Information
SG1 800 2.5-9 Tons Request Information
SB 4-9 Tons Request Information

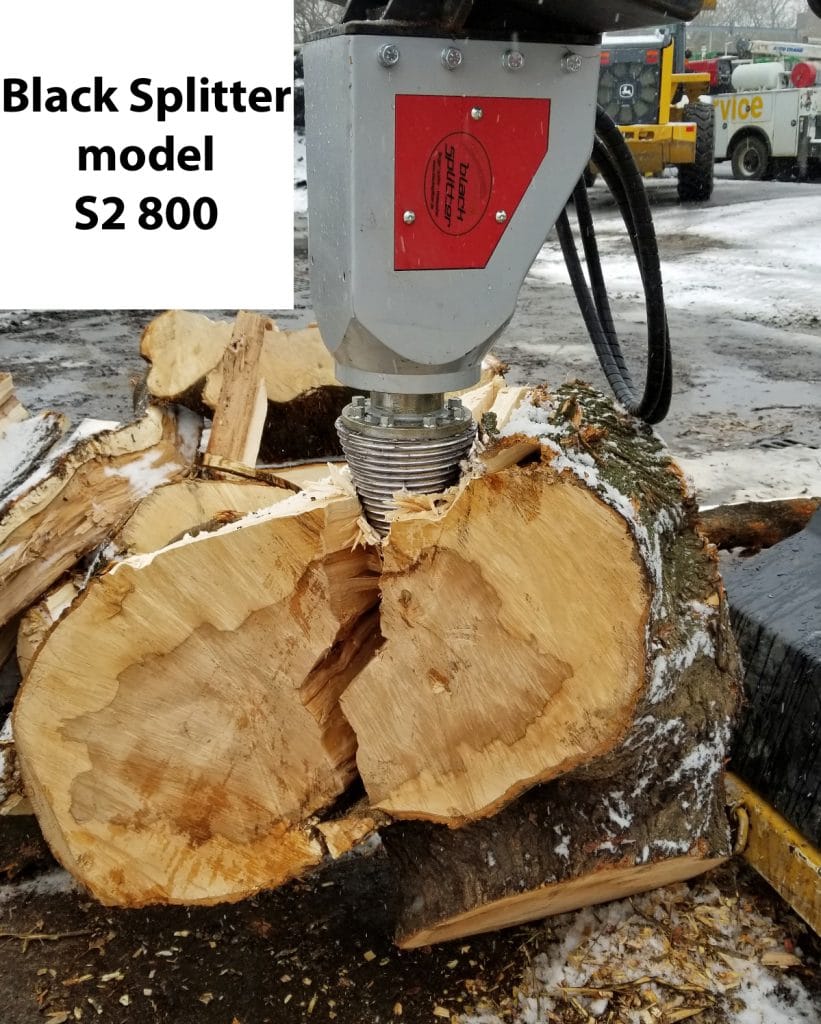

S2 800 1.5-9 Tons Request Information
S1 1-6 Tons Request Information
S1X 7-14 Tons Request Information

Request More Information

Contact us to confirm compatibility & availability for your excavator. Stock can change to 3-8 week availability before we have a chance to update the website. Please call to confirm current availability for your machine. Custom set up may be required. Additional charges may apply. For non-product related questions or comments, please use our contact page.
